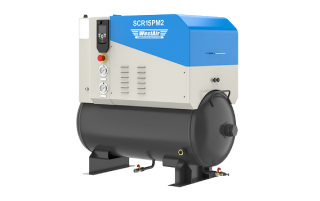

PM2 SERIES – 7.5kw-15kw
High-efficiency tank-mounted permanent magnet VSD rotary screw compressor range (7.5-15kW / 39-81cfm)
Description
SCR PM2 Series
Permanent Magnet Variable Speed Drive (7.5kW-15kW)
The PM2 series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR PM2’s goal is to keep the compressor continually on load and avoid running time offload. PM2 compressors have a wide variable range of 40-100%, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.
PURE SOFT-START SYSTEM AS STANDARD
Soft-start system reduces the electric current during start-up
On start-up, traditional fixed-speed compressors, with direct online or star-delta starters, can draw up to 3.5 times their full load current. The soft-start technology on the PM2 variable speed ensures that the starting current never exceeds the rated value.
SUPER PREMIUM EFFICIENCY MOTOR (IE4 EQUIVALENT)
SCR PM2 FEATURES
Permanent magnet motor
- Reach IE4 efficiency standard
- Lubricant-cooled motor
- VSD: variable speed drive
- IP65 protection
New improved airend
- New improved rotor profile
- R&D in Japan
- Designed to give many years of reliable operation
Innovative inovance inverter
- Wide voltage design
- Meets C3 and C3 EMC requirements
- Built-in DC reactor
- Independent cooling air duct design
- Robust enclosure for trouble-free operation even in the harshest of conditions
Air inlet filter
- Compact
- VSD control
- Low noise level
- High capacity for optimized cooling
- Low power consumption
Cooling fan
- Compact
- VSD control
- Low noise level
- High capacity for optimized cooling
- Low power consumption
Oil filter
- High-efficiency oil filter removes contaminants from the oil
- Oil particles can be controlled at 0.1 micron
- Ensures a smooth and well-lubricated oil system
All-steel internal pipe system
- All-steel internal pipework and compression joints prevent leakage and premature ageing, often seen with flexible pipes
- Reduced air flow friction
KEY DESIGN FEATURES
PATENT DESIGN INTEGRATED AIR RECEIVER & AIR/OIL SEPARTOR TANK
- The new labyrinth structure integrates the oil/air separator tank with the main air receiver.
- Patented design dramatically reduces the compressor size, saving you valuable floor space.
LOW SOUND ACOUSTIC ENCLOSURE
- Quiet noise enclosure
- Perfectly suited to indoor installation
- Can be installed close to work areas
FLIP-TOP EASY MAINTENANCE
A simple flip-top design means that all components are accessible for maintenance.
- Service times are kept to a minimum
- Spin-on separator and oil filter
- No hoses to replace
- Neat rigid pipework layout
- No belts or coupling to change
QUIET NOISE LEVELS
The Work Health and Safety Code of Practice for managing noise at work states that 85dB(A) is an acceptable noise level for 8 hours continuous exposure. From 67-71dB(A), the Westair SCR PMSeries is therefore quiet and perfect for maintaining a safe workplace.
SPACE SAVER
The unique flip-top design minimises the space required around the compressor.
- All service items can be accessed from the front
- No rear service access needed
- No rear airflow ventilation required
- Minimal side clearance needed
- Can be located close to any wall
- From 55cm wide and 123.6cm long
- The small, compact design frees up valuable floor space
SPECIFICATION
Warranty
Standard 2-year warranty – covers the complete compressor (terms and conditions apply)
