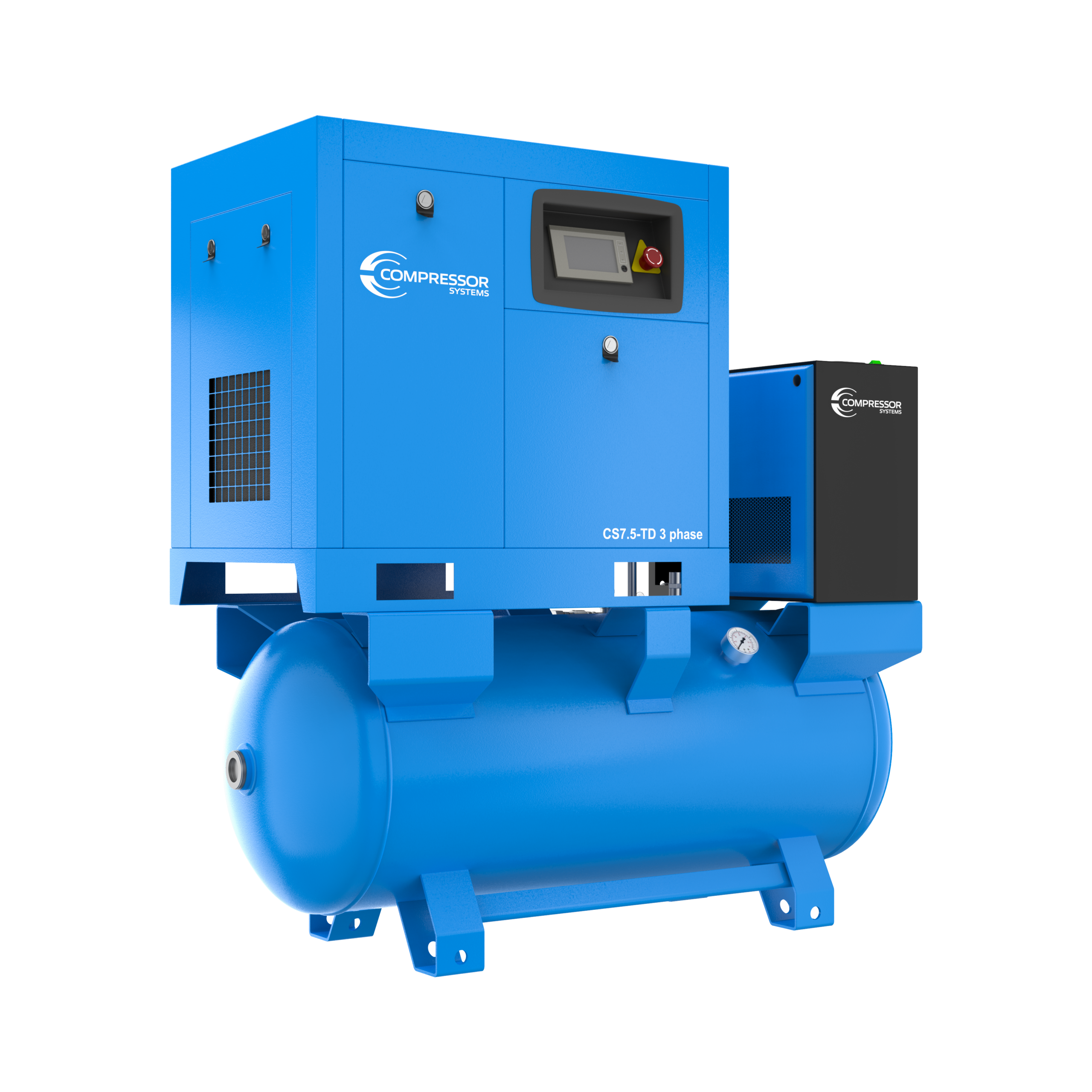

CS All-in-One 10HP with Tank & Dryer
Starting From: $7679
The CS7.5-TD is a 10 HP all-in-one direct-drive rotary screw compressor
delivering 35 CFM at 10 Bar, featuring a 320L air receiver and
integrated refrigerated dryer. With controlled noise levels (65±3 dBA) and
three-phase power, it provides a compact, high-output solution for clean, dry
compressed air.
Description
CS Range All-in-One Model with Tank & Dryer
The CS7.5-TD is engineered to simplify compressed air installations by combining
the rotary screw compressor, pressure vessel, and air dryer into one compact
enclosure. A 6.5-inch full-colour LCD touch screen provides a real-time system
visibility, while the intelligent controller actively manages performance, energy
use, and maintenance notifications.
Key Features:
- Model / SKU: CS7.5-TD
- Power: 7.5 kW / 10 HP direct-drive rotary screw compressor
- Capacity: 35 CFM
- Working Pressure: 10 Bar
- Noise Level: 65±3 dBA
- Power Supply: 415V three-phase
- Air Outlet: 1/2″
- Tank Size: 320L
- Dimensions (L × W × H): 1491 × 787 × 1543 mm
- Weight: 370 kg
- Configuration: All-in-One unit with integrated tank and refrigerated dryer
Advantages of CS All-in-One Screw Compressor
- Replaces separate compressor, tank, and dryer systems
- Reduced installation time and lower setup complexity
- Built-in dryer ensures moisture-free air delivery
- Suitable for continuous operation in demanding environments
Designed for Industrial Conditions
- Robust Cabinet Construction: Suitable for indoor and protected outdoor
installations - High-Capacity Filtration: External filter mats support dusty operating
environments - Improved Sealing: Helps limit dust and moisture ingress
- Industrial-Grade Components: Selected for durability and long service life
Simple Performance Monitoring and Maintenance
The CS7.5-TD controller continuously tracks system performance and provides
early alerts to help prevent unplanned downtime.
Controller Functions Include:
- Live operating data display
- Programmable start/stop scheduling
- Service reminders and alarm logging
- Energy-optimised operating logic
Premium Motor and Airend Assembly
- SKF Bearings: Used throughout key rotating components for extended service
life - BSC Rotary Screw Airend: Designed for stable airflow, efficient compression,
and reduced vibration - European Teflon Oil Seals: Help minimise internal wear and operating noise
Integrated Dryer System
The built-in refrigerated air dryer removes moisture before air reaches your
system, protecting tools, equipment, and processes from condensation and
corrosion.
SUITABLE FOR INDOOR INSTALLATION
With sound levels comparable to everyday workplace noise, the CS4-TD is well
suited for:
- Workshops
- Manufacturing floors
- Service bays and technical areas
Thermal Stability and Cooling
Oversized cooling components maintain stable operating temperatures under load,
helping protect internal components and extend system lifespan.
Clean Air Output
An oversized oil separation system limits oil carryover to below 3 ppm,
ensuring clean compressed air while maintaining efficient system performance.
High-Cycle Suction Valve
The suction valve is designed for over 2 million operating cycles, reducing
wear-related failure points associated with traditional sealing designs.
High-Efficiency Air Intake Filtration
Multi-stage intake filtration improves incoming air quality, reducing internal
contamination and extending component life.
Warranty
This warranty covers the complete compressor, ensuring peace of mind. Terms and conditions apply.
Additional information
Additional information
| Weight | 370 kg |
|---|---|
| Dimensions | 1491 × 787 × 1543 cm |
